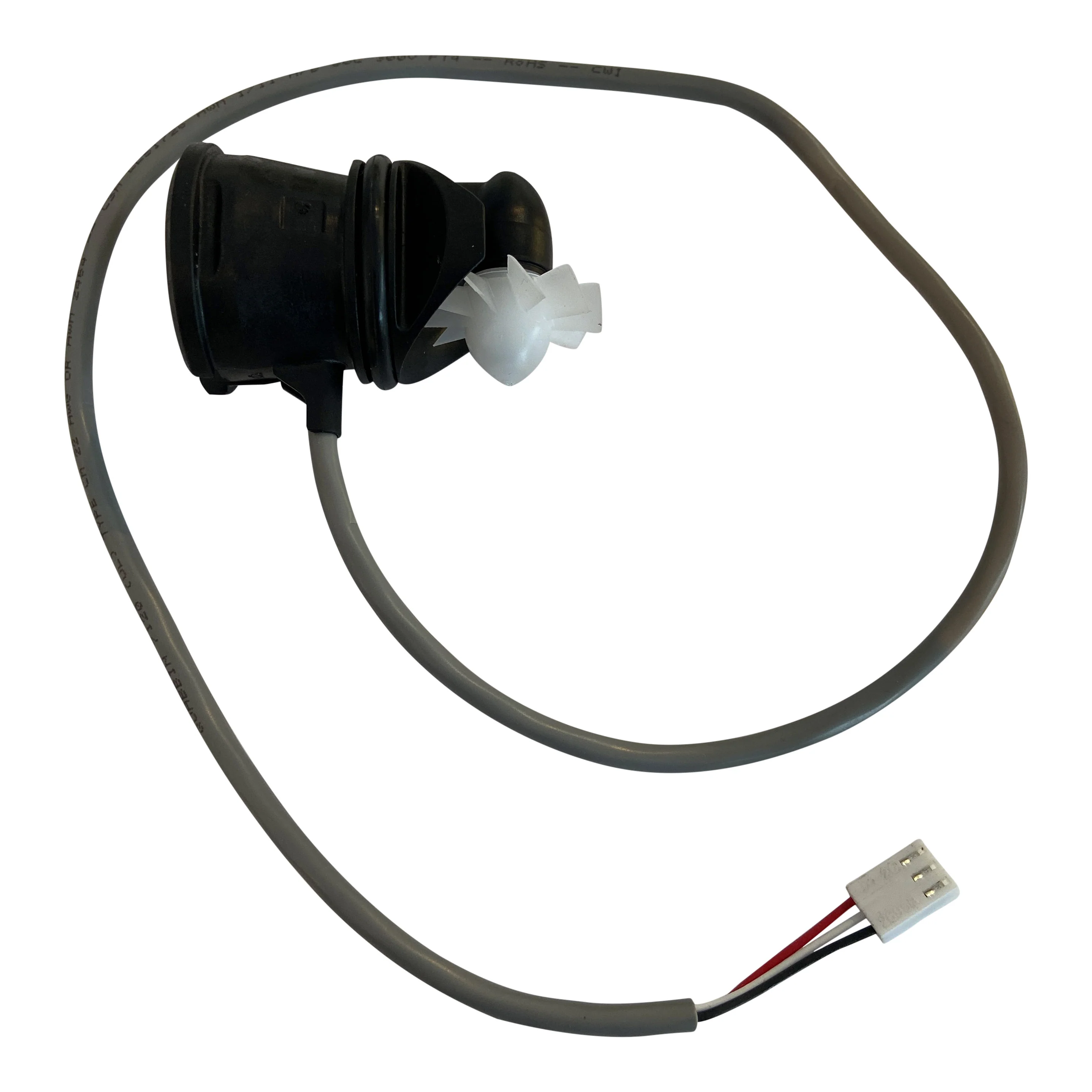

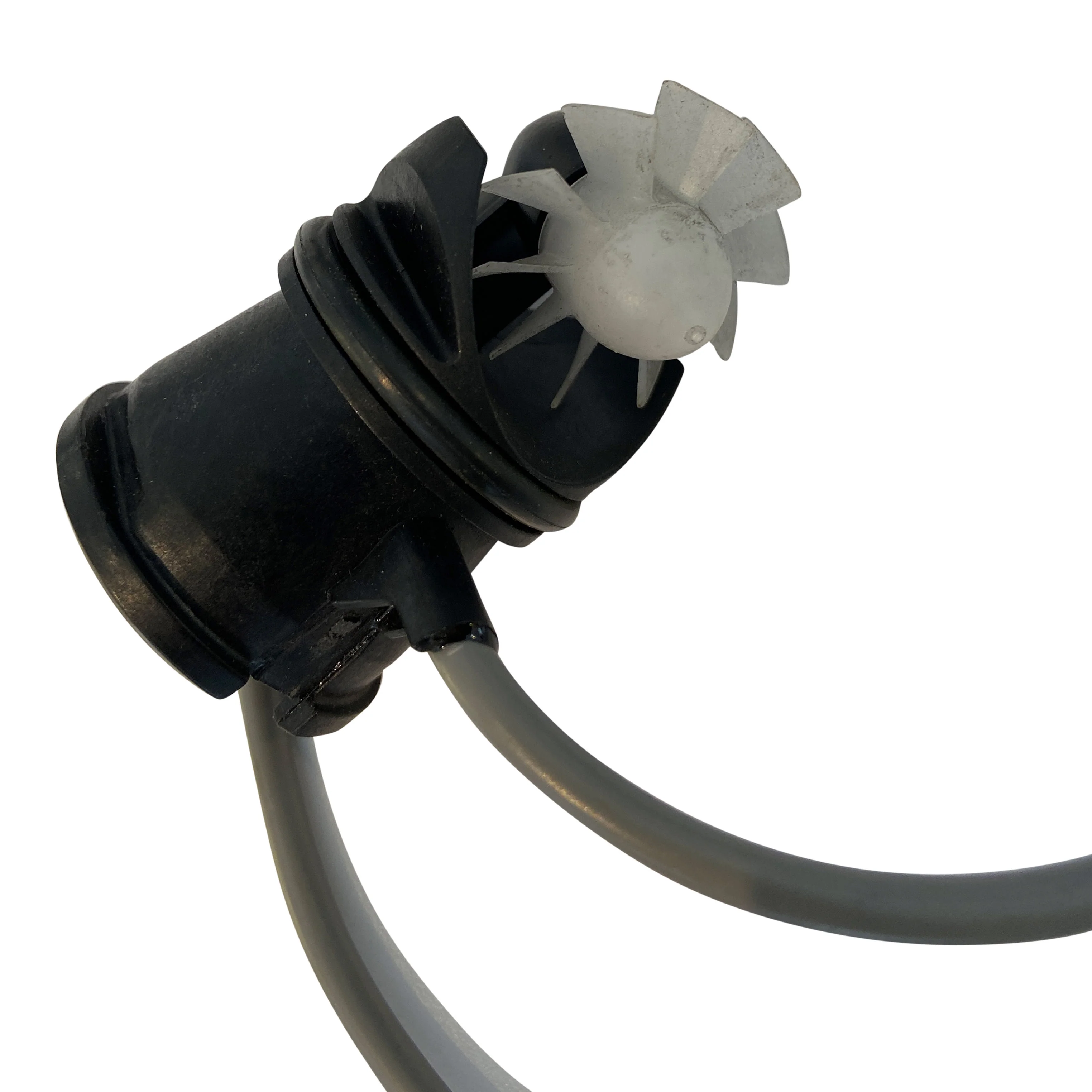

The Clack WS1 Meter Assembly V3003-05 is used on metered Clack WS1 water softener and filtration control valves. The meter assembly measures water flow through the valve and sends usage information to the control board, allowing the system to calculate remaining capacity and regenerate when needed.

This part is commonly replaced when a metered Clack valve is no longer counting gallons properly, the display is not showing water usage, or the system is not regenerating based on demand as expected.

Clack lists part V3003-05 as the WS1 Meter Assembly, 22 in. in its current service parts documentation.

Features

Genuine Clack replacement meter assembly
Part number: V3003-05
Designed for metered Clack WS1 control valves
Helps track gallons used for demand regeneration
Replacement part for softeners and filters using compatible Clack WS1 metered valves
Useful when the valve is not counting water usage correctly

Common Symptoms This Part May Help Correct

Gallons remaining are not decreasing
Valve is not registering water flow
System is not regenerating based on usage
Meter cable or turbine assembly is damaged
Flow icon or water usage indicator is not working properly

Compatibility

Clack WS1 metered control valves
Commonly used on Clack 4-button and 5-button metered valves

Clack’s WS1/WS1.25 service manual identifies the WS1 meter assembly as part of the water meter/meter plug assembly area and notes that the water meter connects to the control board.

Clack WS1 Manual

Product Code: PRT V3003-05

Meter & Spacer Stack Assemblies

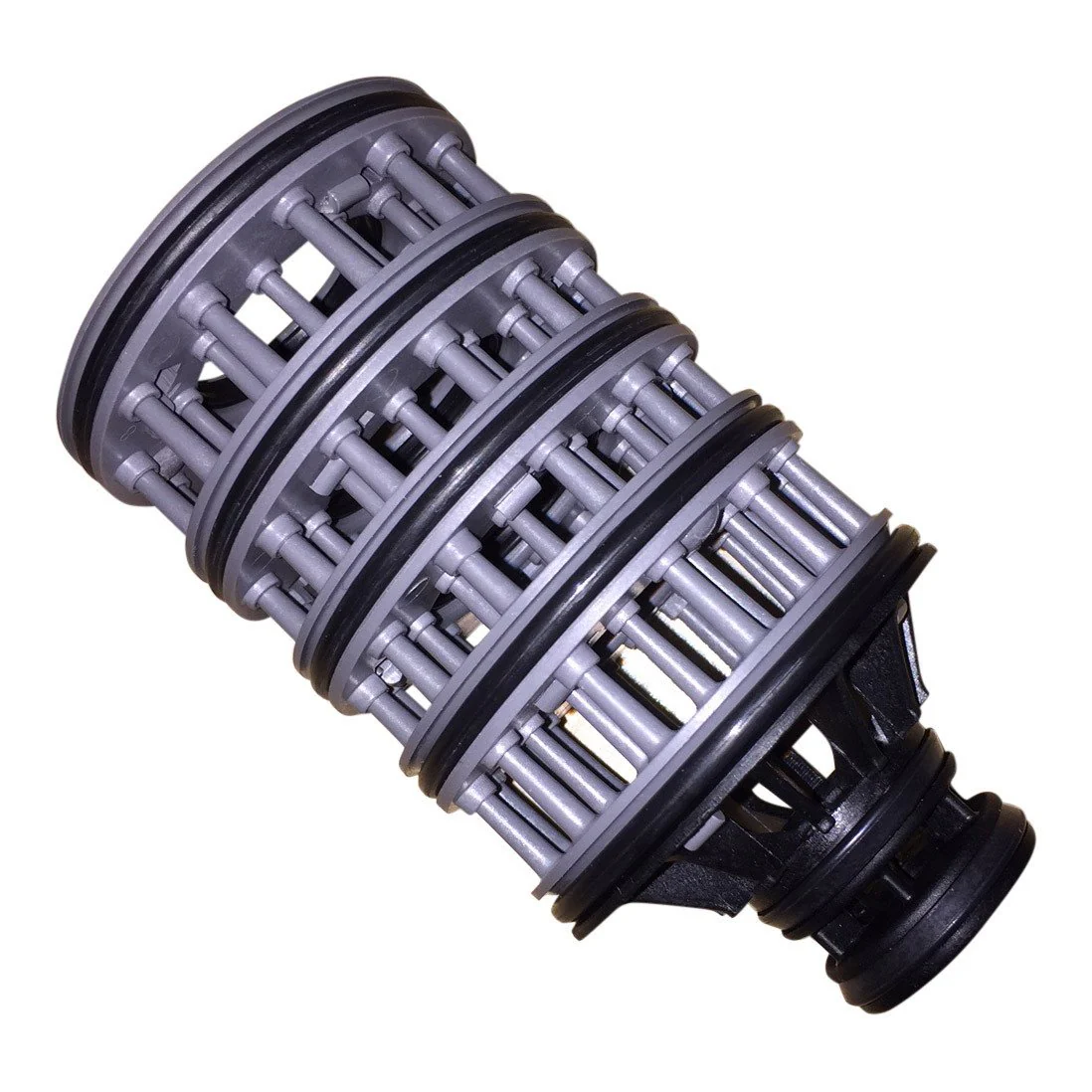

Clack WS1 Spacer Stack Assembly V3005
