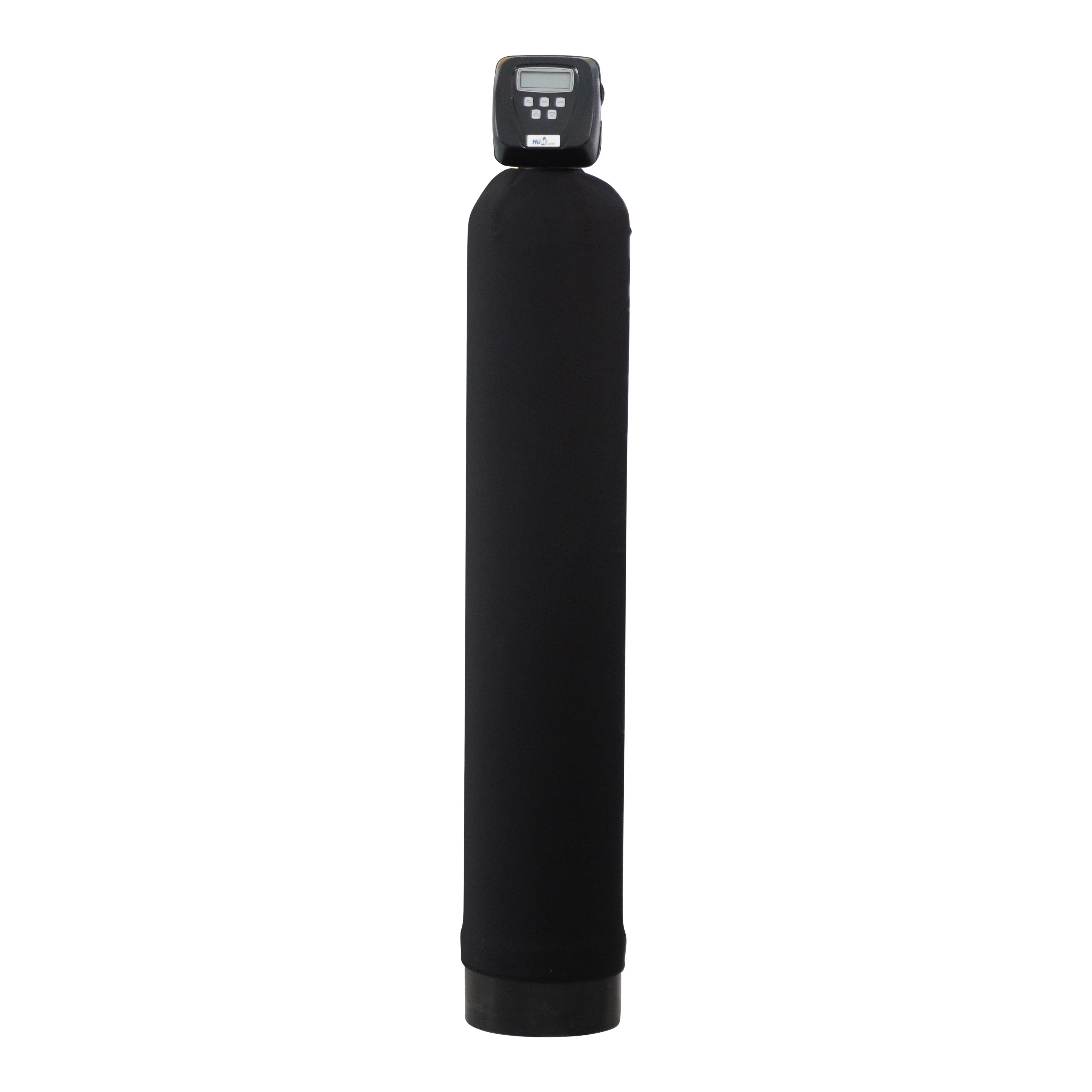

HUM Auto Backwashable Sediment Filter 1 Cubic Foot
Experience superior filtration with this advanced sediment filter designed to remove turbidity and sediment particles as small as 5 microns from well or surface water sources. Ideal for enhancing water clarity and protecting your plumbing system from sediment buildup.
Media Type: Expanded aluminosilicate, a natural zeolite-like material known for its effective fine particulate filtration.
Primary Use: Targeted sediment and turbidity removal for clearer, cleaner water.
Long Lifespan: Engineered to offer durability and reliable performance, the media typically lasts between 5–10 years, depending on your water quality.

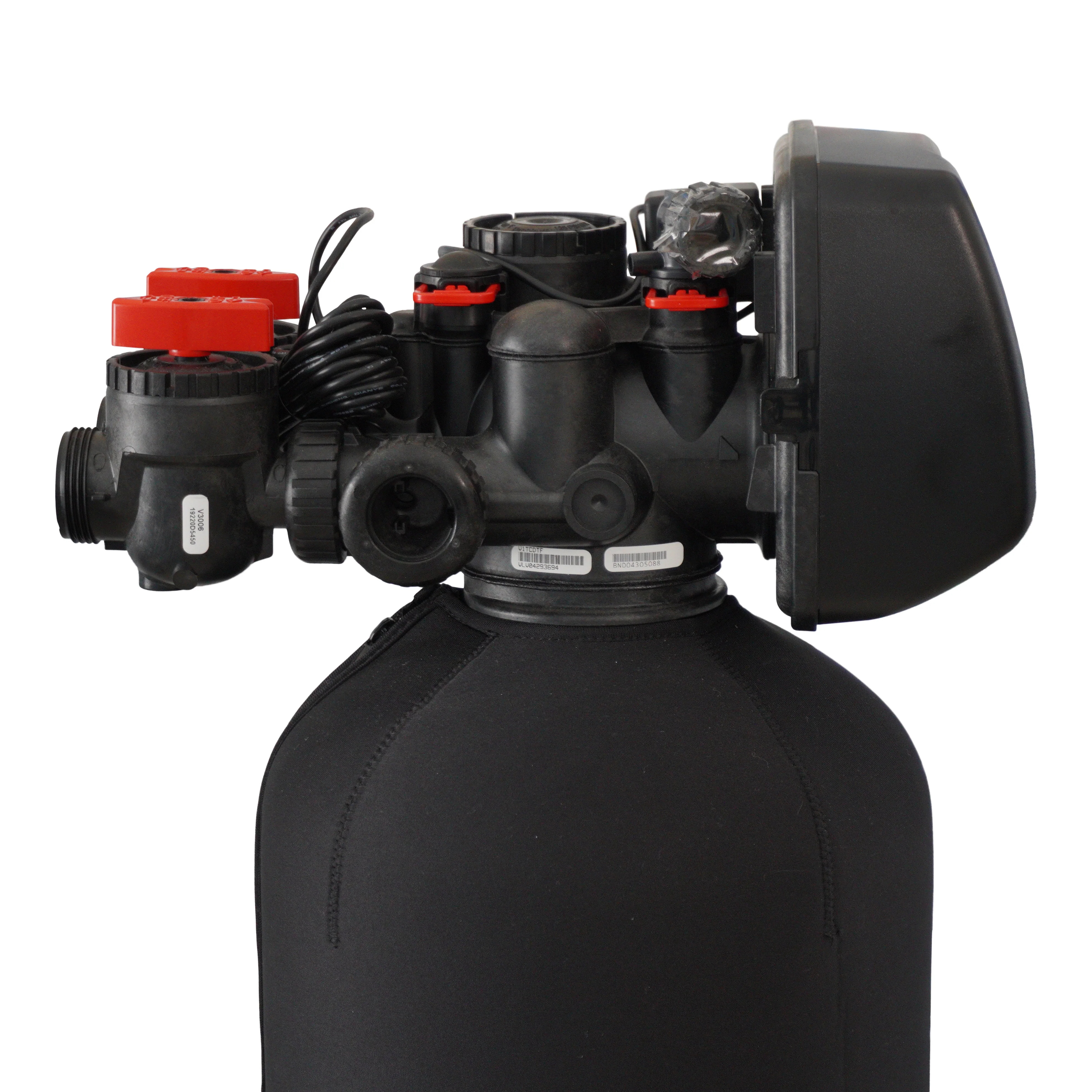

Equipped with a Made in USA Premium Water Treatment Valve and NSF-certified media, this system guarantees trusted quality and safety.
- ✔️ Pre-programmed electronic valve simplifies operation, making setup and adjustments effortless.
- ✔️ Maintains system configuration during power outages to ensure uninterrupted performance.
- ✔️ Electronically controlled for enhanced efficiency and dependable reliability.
- ✔️ Valve manufactured by Clack Corporation in the USA, assuring superior build quality.
- ✔️ Supports valve flow rates up to 27 gpm, accommodating different water demands.
- ✔️ System service flow rate of 8.0 gpm with a backwash flow rate of 6.5 gpm optimizes cleaning and filtration cycles.
- ✔️ Complete valve assembly can be disassembled in under 5 minutes without tools, facilitating easy maintenance and reducing downtime.
- ✔️ Designed without nuts, bolts, screws, or springs, streamlining servicing and minimizing potential failure points.
Physical Properties:
• Color: White to off-white
• Dry Bulk Density: 50 lbs/cu.ft
• Specific Gravity: 2.2 g/cc
• Mesh Size: 14x30
• Effective Size: 0.55mm
• Uniformity Coefficient: 1.8
• Hardness: 4-5 (Mohs Scale)
Operating Conditions:
• Compatible with a wide water pH range
• Maximum Water Temperature: 140˚F/60˚C (media can be steam cleaned for sanitation)
• Bed Depth: 24”–48” (optimal filtration at 36”)
• Freeboard: 50% of bed depth to allow proper expansion during backwash
• Backwash Flow Rate: 14–18 gpm/sq.ft.
• Backwash Bed Expansion: 30–40% of bed depth for thorough cleaning
• Service Flow Rate: 6–15 gpm/sq.ft., with intermittent peak flows up to 20 gpm/sq.ft.
• Influent water quality and effluent requirements may influence operating parameters
• Requires a gravel support bed for proper media support
• Important: Allow the media bed to saturate fully before initial backwash to ensure optimal performance.
Installation Note: Please install a 3/4" drain line to ensure efficient backwash drainage.
Tank Size: 10" x 54"
Product Number: WD CFNS10
Original: $1,549.00
-65%$1,549.00
$542.15More Images
